BLAS/LAPACK packaging

BLAS and LAPACK are the standard libraries for linear algebra. The original implementation, often called Netlib LAPACK, developed since the 1980s, nowadays serves primarily as the origin of the standard interface, the reference implementation and a conformance test suite. The end users usually use optimized implementations of the same interfaces. The choice ranges from generically tuned libraries such as OpenBLAS and BLIS, through libraries focused on specific hardware such as Intel® oneMKL, Arm Performance Libraries or the Accelerate framework on macOS, to ATLAS that aims to automatically optimize for a specific system.

The diversity of available libraries, developed in parallel with the standard interfaces, along with vendor-specific extensions and further downstream changes, adds quite a bit of complexity around using these libraries in software, and distributing such software afterwards. This problem entangles implementation authors, consumer software authors, build system maintainers and distribution maintainers. Software authors generally wish to distribute their packages built against a generically optimized BLAS/LAPACK implementation. Advanced users often wish to be able to use a different implementation, more suited to their particular needs. Distributions wish to be able to consistently build software against their system libraries, and ideally provide users the ability to switch between different implementations. Then, build systems need to provide the scaffolding for all of that.

I have recently taken up the work to provide such a scaffolding for the Meson build system; to add support for BLAS and LAPACK dependencies to Meson. While working on it, I had to learn a lot about BLAS/LAPACK packaging: not only how the different implementations differ from one another, but also what is changed by their respective downstream packaging. In this blog post, I would like to organize and share what I have learned.

Interfaces and libraries

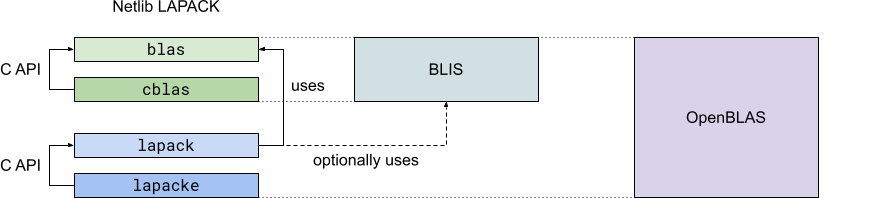

The modern version of the Netlib LAPACK implementation features five libraries: blas, cblas, lapack, lapacke and tmglib. The blas library provides low-level routines for linear algebra, such as vector and matrix arithmetic. The lapack library builds on these routines to provide higher-level functionality, for example solving systems of linear equations. Both of these libraries are written in the Fortran programming language, and therefore provide a programming interface specific to Fortran. The cblas and lapacke libraries provide C-style interfaces to these routines. Finally, tmglib is a library of routines used for testing, far less known and rarely used outside the project.

Netlib LAPACK splits not only the actual libraries, but also the related development files (headers, pkg-config files), therefore encouraging distributions to split the relevant packages as well. Other implementations often combine all the provided interfaces into a single library, such as openblas.

Sometimes invidual interfaces are optional or not implemented at all. In OpenBLAS builds, CBLAS, LAPACK and LAPACKE interfaces can be disabled, though doing that is discouraged to avoid introducing compatibility issues. BLIS does not implement LAPACK at all, while providing BLAS and CBLAS interfaces (the latter being optional). It is usually combined with Netlib LAPACK; libflame is being developed as a LAPACK counterpart to BLIS, but it is not commonly used at the time of writing.

LP64 and ILP64 interfaces

While the BLAS and LAPACK libraries are primarily concerned with floating-point numbers, integer types need to be used for vector and matrix sizes and indices. Originally, 32-bit signed integers were used, even on 64-bit platforms, limiting the maximum array size to 2³¹−1 elements. This interface is often called the LP64 interface, or simply “32-bit BLAS”. Modern packages provide support for building with 64-bit signed integers instead; this interface is called ILP64, “64-bit BLAS”, or “index64”.

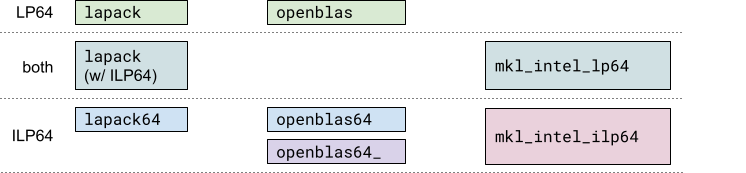

The exact details on how these two interfaces are implemented varies from package to package, and from distribution to distribution. In some cases, the ILP64 routines are installed as a separate library such as openblas64; in other cases, the ILP64 library is installed in place of the LP64 library, or combined with it into a single library. Sometimes, the ILP64 routines are suffixed to make them distinct from LP64 routines; for example the ILP64 counterpart to sgesv_ could be called sgesv_64_. There could be separate headers for the ILP64 interface, or a preprocessor directive such as -DLAPACK_ILP64 may be used to switch the interfaces.

The CMake build system for Netlib LAPACK 3.12.1 supports two variants of ILP64 support: either the -DBUILD_INDEX64 option can be used to build separate libraries (such as lapack64) without symbol suffixes, or the -DBUILD_INDEX64_EXT_API option can be used to include ILP64 symbols in the LP64 library, with a _64 suffix appended to the subroutine name.

The build system for OpenBLAS permits quite a lot customization, and this historically resulted in distributions providing ILP64 support in inconsistent ways. Perhaps the best relic of this are the Fedora packages, as they provide both a openblas64 library that provides ILP64 symbols without suffixes, and a openblas64_ (with an underscore) library, that uses a 64_ suffix appended to the symbol name, as is the recommended OpenBLAS upstream ILP64 convention.

Intel MKL 2025.2 uses a hybrid convention. Its LP64 library and its “Single Dynamic Library” (mkl_rt) both combine LP64 with suffixed ILP64 symbols, while its separate ILP64 library provides both unsuffixed and suffixed ILP64 symbols. In both cases, a _64 subroutine suffix is used, following the same convention as Netlib LAPACK.

The way that suffixes are added means that the symbols are the same for Fortran subroutines (for example, all three libraries provide dgemm_64_), but not for the C routines (there is a cblas_dgemm_64 symbol in Netlib BLAS and MKL, and a cblas_dgemm64_ symbol in OpenBLAS).

Threading models

As providers of computationally intensive routines, the BLAS and LAPACK libraries can often benefit from parallelization. The optimized implementations such as OpenBLAS, BLIS or MKL feature support for multiple threading models to take advantage of that. All these libraries come in at least three variants: a serial (or “sequential”) variant that runs computations using a single thread, a variant using POSIX threads or TBB (in case of MKL), and a variant using OpenMP. MKL comes precompiled for the GNU OpenMP and the Intel OpenMP libraries.

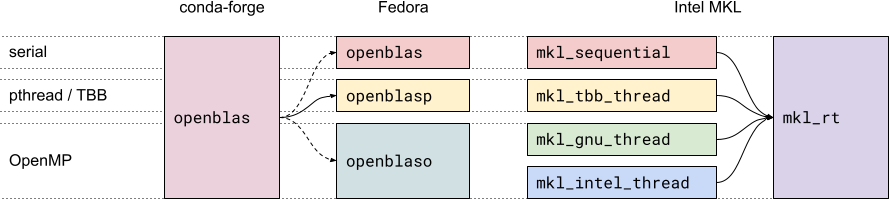

Again, the exact details differ across distributions. Some support installing only a single library for the selected threading model, so openblas may either represent the serial, the POSIX threads or the OpenMP variant. Others install multiple variants; on Fedora, there is a serial openblas, a threaded openblasp and an OpenMP-enabled openblaso. MKL goes even further, with its “Single Dynamic Library” permitting switching between different threading models at runtime.

API and ABI compatibility

BLAS / LAPACK is a living specification, and its interface is defined by Netlib LAPACK releases. For example, LAPACK 3.12.0 introduced a dgedmd_ function, and its implementation was added to OpenBLAS in 0.3.24. In addition to new interfaces being added, functions are also occasionally deprecated. Netlib LAPACK can be configured not to include deprecated symbols. The resulting differences can introduce incompatibilities between applications and different BLAS / LAPACK implementations.

Besides additions and deprecations, API and ABI incompatibilities could also be caused by disabling optional components (such as the CBLAS or LAPACKE interfaces), by using different symbol suffixes (for example, while building the ILP64 interface) or Fortran calling conventions (this particularly affects callbacks and complex numbers). Perhaps the most extreme case of this issue is the Apple's Accelerate library, in which modern LAPACK interfaces all use a custom $NEWLAPACK suffix. More information on compatibility issues can be found in Ralf Gommers's notes on Apple Accelerate and BLAS, LAPACK and OpenMP documentation from pypackaging-native.

If BLAS / LAPACK is used in a shared library, things become even more complex. When multiple binaries that link dynamically to different implementations are loaded into the same program, the program may end up using the routines from a different implementation than it was compiled against, or even mixing routines from different implementations (if they implement a different subset of functions). This is particularly problematic if both LP64 libraries and ILP64 libraries that do not use a symbol suffix are used simultaneously, as the symbols from one of them will clobber the symbols from the other and parts of the code may call the wrong functions.

Different approaches to swapping implementations

Advanced users and distributions often find it desirable to be able to choose between different BLAS / LAPACK implementations for a given package. The simplest approach to achieve that is to provide an option to select the library used to build the package. Such an option could afterwards be exposed to the users, for example by publishing different variants of conda-forge packages, or by exposing the choice via USE flags in Gentoo Linux.

However, such an approach is suboptimal, as it requires that the package is built separately against every supported provider, even if it would be ABI-compatible with all of them. Therefore, such an approach is generally used only for packages that take advantage of vendor-specific extensions to a specific implementation. For example, conda-forge's PyTorch packages provide “generic” and “mkl” variants, the former compatible with any LAPACK implementation, the latter using additional MKL functionality.

Better interchangeability can be achieved through a solution such as the packages built from conda-forge's blas feedstock (see: conda-forge's Knowledge Base: Switching BLAS implementation), Debian's alternatives system (see: Debian: Handle different versions of BLAS and LAPACK, as of December 2022) or Gentoo's historical eselect modules. These approaches replace the libraries originally provided by Netlib LAPACK with symbolic links or wrappers, referencing another implementation. For example, installing the openblas variant of the liblapack conda-forge package creates a liblapack.so.3 symbolic link to the OpenBLAS library.

This approach makes it possible to avoid rebuilding other packages while switching implementations; it is sufficient to replace the wrappers. Unfortunately, it is rather complex. In particular, one needs to ensure that the built packages link to the generic library names and use compatible API and ABI. This is usually achieved by building them against the reference implementation rather than the symbolic links, which is not always trivially possible. Furthermore, resolving symbol name and other ABI differences requires creating complex wrappers, such as conda-forge's wrapper libraries for Accelerate.

Gentoo's eselect-ldso system is an elaboration on this scheme. Rather than symbolic links, the system library directory contains the reference Netlib libraries, and packages are built against these libraries. Wrappers for other implementations are installed into dedicated directories, and they can be activated by adding these directories into the dynamic linker search paths (using the ld.so.conf file or the LD_LIBRARY_PATH environment variable).

An interesting side effect of many of these approaches is that the reference library names are no longer guaranteed to refer to the Netlib LAPACK implementation. On Debian, the Netlib libraries are installed into the blas and lapack subdirectories of the library directory. On the experimental port of Gentoo to FlexiBLAS, they are renamed to use a -reference suffix (for example, the lapack64 library is renamed to lapack64-reference).

One library to rule them all

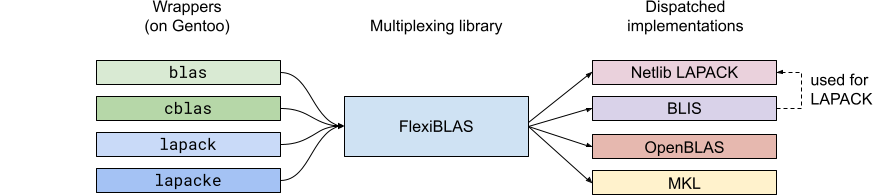

The limitations of alternative-based approaches, in particular concerning API and ABI compatibility, make it desirable to use a multiplexing library to abstract over different implementations. One example of such a library is FlexiBLAS, currently used by Fedora (see: Fedora documentation: Linear AlVgebra Libraries), and experimentally in Gentoo (see: [gentoo-dev] Redoing BLAS/LAPACK in Gentoo, using FlexiBLAS). Another example is libblastrampoline, used by the Julia programming language.

With multiplexing approach, the individual packages aren't built against any particular BLAS / LAPACK implementation, but rather against a multiplexing library, and usually against the programming interface provided by it. At runtime, the multiplexer dispatches the function calls to the provider library selected by the user at runtime, or to a fallback implementation if said provider does not implement the requested function. This makes it possible to even up the API and ABI differences between providers, while respecting the user preference as much as possible.

Again, there are some minor implementation differences between distributions. In Fedora, packages are built and linked directly to FlexiBLAS, while Gentoo is experimenting with using a layer of wrappers for backwards compatibility.

Summary

BLAS and LAPACK started as Fortran libraries, and evolved into the standard interfaces for linear algebra, with multiple implementations conforming to them. However, their historical evolution combined with downstream customizations has resulted in quite a complex landscape of libraries and wrappers. Even targeting a very specific provider requires awareness of build configuration and packaging differences.

The Netlib LAPACK distribution installs separate libraries, while other implementations combine the interfaces into a single library. Individual interfaces are optional and can be disabled. The libraries can provide the LP64 interface, the ILP64 interface or both. The ILP64 interface can use different symbol suffixes (or none); either separate headers or preprocessor definitions can be used to use it. The Accelerate library uses suffixed symbols for the modern LAPACK interface in general. Many implementations feature sequential and multiple multithreaded variants; these can be either packaged interchangeably or installed simultaneously.

Furthermore, the different implementations can be ABI-compatible with one another and therefore interchangeable; API-compatible without ABI compatibility, requiring rebuilding; or they can feature API incompatibilities that require explicit code-level support. A dispatching library such as FlexiBLAS can be used to provide API and ABI compatibility.

All these aspects may be further customized by distributions, and change over time. Sometimes the base libraries traditionally used by Netlib LAPACK are replaced by symbolic links or wrappers to facilitate switching between different implementations. A different provider library may be used while building the package, and at its runtime.

This system largely works for downstream packaging, but it is not necessarily easy for software authors to navigate in. A package aiming to use only a specific BLAS / LAPACK implementation needs to account for all the variation in how it is packaged, possibly using elaborate discovery methods: searching for the correct library, the correct headers, the correct symbol suffix. At the same time, it is often desirable to provide advanced users and distribution packagers with a choice of the implementation, which necessitates extending this discovery to the different providers and their variations. Build systems such as Meson are caught in the middle of this, often being in the best position to provide the abstraction needed for that.
